26716-120002 Marine + Industrial

NUT, M12

26716-120002 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links — they help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
3TN75E-G1 24hp3TN75E-G2 24hp3TN82E-G1 33hp3TN82E-G2 33hp3TN84L-RTBZ 33hp3TNE84-G1A3TNE84-G2A3TNE84-SA3TNE84C-G1A3TNE84T-EMP4TN82E-G1 38hp4TN82E-G2 38hp4TNE84-EG1A4TNE84-ESA4TNE84-G1A014TNE84-G2A014TNE84-SA4TNE88-PG2YM15 14hp3HM35C 34hp3HM35F 34hp3JH2 38hp3JH2-TE 47hp3JH2Z 38hp3JH3CE 40hp3JH3E 40hp3JH3E(EPA) 40hp3JH4E 39hp3JH5E 38.5hp3QM 30hp3YM20 21hp3YM30 29hp3YM30AE 29hp4JH 44hp4JH-DTE 77hp4JH-HT 66hp4JH-T 55hp4JH-TE 50hp4JH2-DTE 88hp4JH2-HTE 75hp4JH2-TE 62hp4JH2-UTE(B) 100hp4JH2E 50hp4JH3-DTE 125hp4JH3-HTE 100hp4JH3CE 56hp4JH3CE1 56hp4JH3E 56hp4JH4-HTE 110hp4JH4-TE 75hp4JH4AE 55hp4JH4E 55hp4JH5E 53.8hp4LH-DTE 170hp4LH-HTE 140hp4LHA-HTE(P) 160hp6LP-DTE 250hp6LP-DTZE 250hp6LP-DTZEP1 250hp6LP-STE 300hp6LP-STZE 300hp6LP-STZEP1 300hp6LPA-STP2 315hp6LPA-STZP2 315hp6LPA-STZP3 315hpYSM12 12hpYSM8 8hp
Saildrives & gearboxes
SD20SD20A-SSD20B-SSD20C-SSD25SD30SD31SD40SD40-4TSD50SD50-4TZT350ZT370

Supersession

Superseded by
Part No.DescriptionCodeApplies
26706-120002 NUT M12 R A=*1992.11; A=*1992.11; B=*1992.11; C=*1992.11
Replaces (older)
Part No.DescriptionCodeApplies
26717-120002 NUT 12 R
No cross-references recorded for this part yet.

Used in 82 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
SD20, SD20A-S SD20A-S Parts Catalog Fig 4. RUBBER MOUNT & SEAL FLANGE 11 4 2 2
SD20, SD20B-S SD20A-S Parts Catalog Fig 4. RUBBER MOUNT & SEAL FLANGE 11 8 2 2
SD20, SD20C-S SD20A-S Parts Catalog Fig 4. RUBBER MOUNT & SEAL FLANGE 11 12 2 2
SD20 SD20 Parts Catalog Fig 5. RUBBER MOUNT & SEAL FLANGE 9 4 2 2
SD20 SD20 Parts Catalog Fig 5. RUBBER MOUNT & SEAL FLANGE 9 8 2 2
SD20, SD30, SD31 SD20 Parts Catalog Fig 5. RUBBER MOUNT & SEAL FLANGE 9 12 2 2
SD20, SD20A-S, SD20B-S, SD20C-S SD20A-S Parts Catalog Fig 8. SPECIAL TOOL(B)(OPTIONAL) 15 35 2 1
SD25 SD25 Parts Catalog Fig 5. RUBBER MOUNT(OPTIONAL) 8 4 2 2
SD25 SD25 Parts Catalog Fig 5. RUBBER MOUNT(OPTIONAL) 8 8 2 2
SD25 SD25 Parts Catalog Fig 5. RUBBER MOUNT(OPTIONAL) 8 12 2 2
SD25 SD25 Parts Catalog Fig 11. SPECIAL TOOL(B)(OPTIONAL) 14 46 2 1
SD40, SD40-4T, SD50, SD50-4T SD50 Parts Catalog Fig 4. RUBBER MOUNT & SEAL FLANGE 7 4 2 2
SD40, SD40-4T, SD50, SD50-4T SD50 Parts Catalog Fig 10. SPECIAL TOOL(B)(OPTIONAL) 13 33 2 4
ZT350, ZT370 ZT350-ZT370 Parts Catalog Fig 24. SPECIAL TOOL(1)(OPTIONAL) (A)=ZT350 35 33 3 4
ZT350, ZT370 ZT350-ZT370 Parts Catalog Fig 25. SPECIAL TOOL(2)(OPTIONAL) (A)=ZT350 37 34 4 1
ZT350, ZT370 ZT350-ZT370 Parts Catalog Fig 25. SPECIAL TOOL(2)(OPTIONAL) (A)=ZT350 37 49 4 1
3TN75E-G1, 3TN75E-G2, 3TN82E-G1, 3TN82E-G2 3TN82E Parts Catalog Fig 24. FUEL INJECTION PUMP(3TN75/82E) 36 106 1 1
4TN82E-G1, 4TN82E-G2 3TN82E Parts Catalog Fig 25. FUEL INJECTION PUMP(4TN82E) 39 101 1 1
3TN84L-RTBZ 3TN84L Parts Catalog Fig 12. FUEL INJECTION PUMP 16 63 1 1
3TNE84-G1A, 3TNE84-G2A, 3TNE84-SA, 3TNE84C-G1A 3TNE84 Parts Catalog Fig 8. CAMSHAFT & DRIVIMG GEAR 13 17 1 1
3TNE84T-EMP 3TNE84T-EMP Parts Catalog Fig 13. FUEL INJECTION PUMP (A)=3TNE84T-EMP 17 93 4 1
4TNE84-G1A01, 4TNE84-G2A01, 4TNE84-SA 4TNE84 Parts Catalog Fig 8. CAMSHAFT & DRIVING GEAR (A)=4TNE84-SA 12 18 1 1
4TNE84-EG1A, 4TNE84-ESA 4TNE84 Parts Catalog Fig 13. FUEL INJECTION PUMP (A)=4TNE84-SA 18 112 3 1
4TNE88-PG 4TNE88-PG Parts Catalog Fig 7. CAMSHAFT & DRIVING GEAR (A)=4TNE88-PG 11 16 1 1
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 44. STARTING MOTOR 57 7 1 2
1GM10 1GM10 Parts Catalog Fig 55. STARTING MOTOR 62 4 1 2
2YM15 2YM15 Parts Catalog Fig 19. FUEL INJECTION PUMP 23 94 2 1
3HM35C 3HM35 Parts Catalog Fig 15. FLEXIBLE MOUNT 16 4 1 4
3HM35C, 3HM35F 3HM35 Parts Catalog Fig 57. STARTING MOTOR 58 4 1 2
3JH2Z 3JH2 Parts Catalog Fig 5. MOUNTING FOOT 8 25 1 12
3JH2, 3JH2-TE 3JH2-TE yanmarshop parts.csv Fig 18. FUEL INJECTION PUMP 1 73 1
3JH2Z 3JH2 Parts Catalog Fig 21. TIMER 25 17 1 1
3JH2, 3JH2-TE 3JH2-TE yanmarshop parts.csv Fig 29. TOOL 1 11 1
3JH2, 3JH2Z 3JH2 Parts Catalog Fig 29. TOOL 34 14 2 1
3JH3E(EPA) 3JH3E Parts Catalog (2) Fig 24. FUEL INJECTION PUMP 30 73 4 1
3JH3E(EPA) 3JH3E Parts Catalog Fig 24. FUEL INJECTION PUMP 26 73 4 1
3JH3E(EPA) 3JH3E Parts Catalog (2) Fig 24. FUEL INJECTION PUMP 30 80 1 1
3JH3E(EPA) 3JH3E Parts Catalog Fig 24. FUEL INJECTION PUMP 26 80 1 1
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog Fig 46. TOOL 51 12 2 1
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog (2) Fig 46. TOOL 56 12 2 1
3JH4E 3JH4E Parts Catalog Fig 25. FUEL INJECTION PUMP 29 71 4 1
3JH4E 3JH4E Parts Catalog Fig 42. TOOL 48 12 2 1

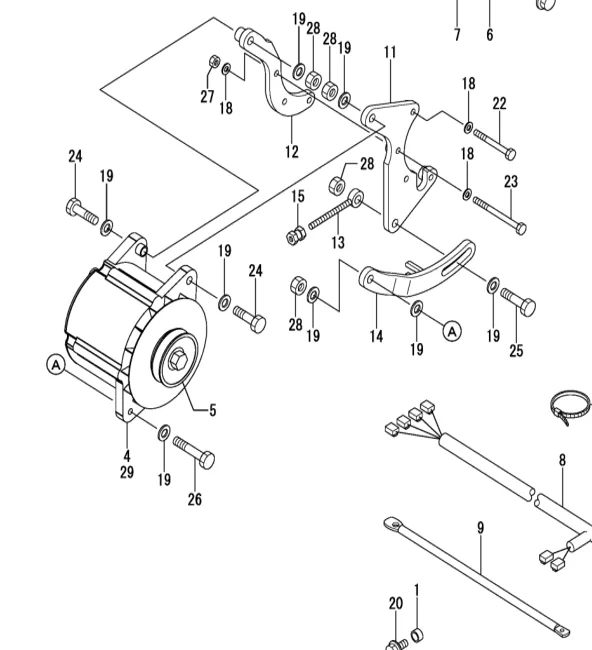

3JH4E 3JH4E Parts Catalog Fig 44. GENERATOR(130A) & GENERATOR ATTACHMENT 50 28 1 4
3JH5E 3JH5E Parts Catalog Fig 4. MOUNTING FOOT 7 15 1 2
3JH5E 3JH5E Parts Catalog Fig 43. TOOL 51 12 2 1
3JH5E 3JH5E Parts Catalog Fig 45. GENERATOR(130A) & GENERATOR ATTACHMENT PARTS(OPTIONAL) 53 21 1 4
3QM 3QM30 Parts Catalog Fig 1. CYLINDER BLOCK 2 61 1 2
3QM 3QM30 Parts Catalog Fig 26. SPECIAL TOOL(OPTIONAL) 46 12-1 ▲ 2
3YM20 3YM20 Parts Catalog Fig 4. MOUNTING FOOT 7 14 2 2
3YM20 3YM20 Parts Catalog Fig 20. FUEL INJECTION PUMP 27 93 2 1
3YM30, 3YM30AE 3YM30AE Parts Catalog Fig 4. MOUNTING FOOT 7 12 1 2
3YM30, 3YM30AE 3YM30AE Parts Catalog Fig 18. FUEL INJECTION PUMP 21 103 2 1
3YM30 3YM30 Parts Catalog Fig 20. FUEL INJECTION PUMP 24 93 2 1
4JH-T 4JH 4JH-T 4JH-HT Parts Catalog Fig 28. FUEL INJECTION PUMP 37 88 1 1
4JH, 4JH-DTE 4JH-DTE Parts Catalog Fig 39. TIMER 45 17 1 1
4JH, 4JH-HT, 4JH-T 4JH 4JH-T 4JH-HT Parts Catalog Fig 52. SPECIAL TOOL 72 4 2 1
4JH2-DTE, 4JH2-HTE, 4JH2-TE 4JH2 Parts Catalog Fig 29. FUEL INJECTION PUMP(4JH2-TE,HTE,DTE) 40 82 1 1
4JH2-DTE 4JH2 Parts Catalog Fig 29. FUEL INJECTION PUMP(4JH2-TE,HTE,DTE) 40 82-1 ▲ 1 1
4JH2-DTE, 4JH2-HTE, 4JH2-TE, 4JH2-UTE(B), 4JH2E 4JH2 Parts Catalog Fig 45. TOOL 60 11 2 1
4JH2-DTE, 4JH2-HTE, 4JH2-TE 4JH2E Parts Catalog Fig 29. F.I.PUMP(4JH2-TE,HTE,DTE) 40 82 1 1
4JH2-DTE 4JH2E Parts Catalog Fig 29. F.I.PUMP(4JH2-TE,HTE,DTE) 40 82-1 ▲ 1 1
4JH2-DTE, 4JH2-HTE, 4JH2-TE, 4JH2-UTE(B), 4JH2E 4JH2E Parts Catalog Fig 45. TOOL 60 11 2 1
4JH3-DTE, 4JH3-HTE 4JH3-HTE-DTE Parts Catalog Fig 48. TOOL 50 12 2 1
4JH3CE, 4JH3CE1, 4JH3E 4JH3E Parts Catalog Fig 72. TOOL 83 12 2 1
4JH4-TE 4JH4-TE-HTE Parts Catalog Fig 4. MOUNTING FOOT 8 13 2 2
4JH4-HTE, 4JH4-TE 4JH4-TE-HTE Parts Catalog Fig 41. GENERATOR(130A) & GENERATOR ATTACHMENT 46 27 1 3
4JH4-HTE, 4JH4-TE 4JH4-TE-HTE Parts Catalog Fig 45. TOOL 50 12 2 1
4JH4AE 4JH4AE Parts Catalog Fig 4. MOUNTING FOOT 7 13 2 2
4JH4AE 4JH4AE Parts Catalog Fig 42. TOOLS 50 12 2 1
4JH4E 4JH4E Parts Catalog Fig 26. FUEL INJECTION PUMP 30 69 4 1
4JH4E 4JH4E Parts Catalog Fig 44. TOOL 50 12 2 1
4JH4E 4JH4E Parts Catalog Fig 46. GENERATOR(130A) & GENERATOR ATTACHMENT 52 21 1 4
4JH5E 4JH5E Parts Catalog Fig 4. MOUNTING FOOT 7 13 2 2
4JH5E 4JH5E Parts Catalog Fig 43. TOOL 51 12 2 1
4JH5E 4JH5E Parts Catalog Fig 45. GENERATOR(130A) & GENERATOR ATTACHMENT PARTS(OPTIONAL) 53 21 1 4
4JH-TE 4JHE-4JH-TE Parts Catalog Fig 49. TIMER & FUEL PUMP DRIVING GEAR 55 17 1 1
4LH-DTE, 4LH-HTE 4LH Parts Catalog Fig 72. STRAIGHT COUPLING(OPTIONAL) 100 3 1 4
4LHA-HTE(P) 4LHA Parts Catalog Fig 58. CLUTCH & DRIVE ATTACHMENT 75 14 1 4
6LPA-STP2, 6LPA-STZP2, 6LPA-STZP3 6LPA Parts Catalog Fig 37. FUEL INJECTION PUMP 44 14 1 2
6LP-DTE, 6LP-DTZE, 6LP-DTZEP1, 6LP-STE, 6LP-STZE, 6LP-STZEP1 6LP Parts Catalog Fig 43. FUEL INJECTION PUMP 50 24 1 1 / 2
YSM12, YSM8 YSM YA YC Parts Catalog Fig 22. FOUNDATION PLATE & BOLT 115 22-10 1 4
YSM12, YSM8 YSM YA YC Parts Catalog Fig 24. SPECIAL TOOLS (OPTIONAL PARTS) 120 24-5 1 2
