26116-060162 Marine + Industrial

BOLT, M6X 16 PLATED

26116-060162 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links — they help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
3TN82E-G1 33hp3TN82E-G2 33hp3TN84L-RTBZ 33hp3TNE84-G1A3TNE84-G2A3TNE84-SA3TNV88-BPTS 36hp4TN82E-G1 38hp4TN82E-G2 38hp1GM 7.5hp3JH4E 39hp3JH5E 38.5hp3QM 30hp4JH4-HTE 110hp4JH4-TE 75hp4JH4AE 55hp4JH4E 55hp4JH5E 53.8hp
No cross-references recorded for this part yet.

Used in 19 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty

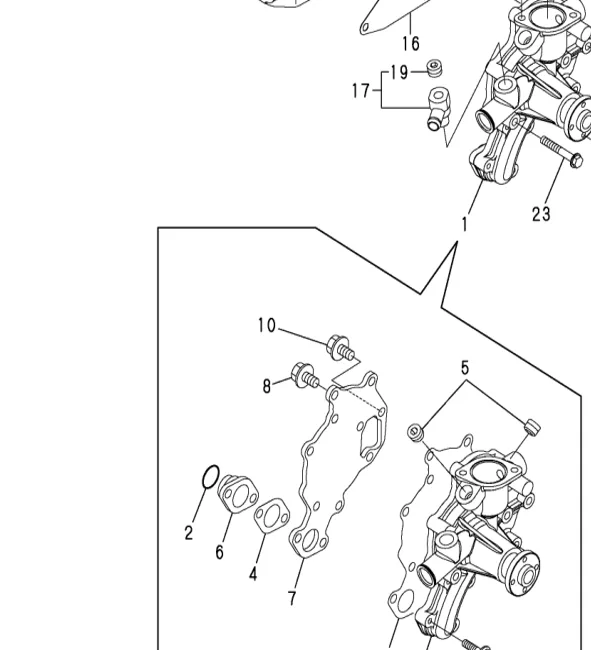

3TN82E-G1, 3TN82E-G2, 4TN82E-G1, 4TN82E-G2 3TN82E Parts Catalog Fig 22. COOLING WATER SYSTEM 31 28 2 2
3TN84L-RTBZ 3TN84L Parts Catalog Fig 11. THERMOSTAT 15 8 2 2
3TNE84-G1A, 3TNE84-G2A, 3TNE84-SA 3TNE84 Parts Catalog Fig 11. COOLING WATER SYSTEM 17 31 2 2
3TNV88-BPTS 3TNV88 Parts Catalog Fig 10. COOLING WATER SYSTEM 14 15 2 3
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 3. GEAR HOUSING 10 39 1 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 28. COOLING FRESH WATER COOLER 39 28 2 4
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 29. COOLING FRESH WATER COOLER(3HMF) 40 20 2 4
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 35. FUEL FEED PUMP 47 4 1 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 38. FUEL PIPE 50 19 1 4
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 38. FUEL PIPE 50 19-1 1 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 75. COOLING FRESH WATER PUMP 89 24 2 4
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 77. FUEL PIPE 92 14 1 4
3JH4E 3JH4E Parts Catalog Fig 18. COOLING FRESH WATER PUMP 22 10 2 1
3JH5E 3JH5E Parts Catalog Fig 17. COOLING FRESH WATER PUMP 20 9 2 3
3QM 3QM30 Parts Catalog Fig 1. CYLINDER BLOCK 2 76 1 2
4JH4-HTE, 4JH4-TE 4JH4-TE-HTE Parts Catalog Fig 20. COOLING FRESH WATER PUMP 24 9 2 3
4JH4AE 4JH4AE Parts Catalog Fig 17. COOLING FRESH WATER PUMP 20 9 2 3
4JH4E 4JH4E Parts Catalog Fig 18. COOLING FRESH WATER PUMP 21 10 2 1
4JH5E 4JH5E Parts Catalog Fig 17. COOLING FRESH WATER PUMP 20 9 2 3
