22351-040010 Marine + Industrial

PIN, SPRING 4.0X10

22351-040010 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links — they help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
3TN66-UMF3TN66L-UT3TN75E-G1 24hp3TN75E-G2 24hp3TN82E-G1 33hp3TN82E-G2 33hp3TN84L-RTBZ 33hp3TNE68-UMF3TNE84-G1A3TNE84-G2A3TNE84-SA3TNE84C-G1A3TNE84T-EMP4TN82E-G1 38hp4TN82E-G2 38hp4TNE84-EG1A4TNE84-ESA4TNE84-G1A014TNE84-G2A014TNE84-SA4TNE88-PG1GM 7.5hp1GM10 9hp1GM10C 9hp3GM30 27hp3GM30-YEU 27hp3GM30B 27hp3GM30C 27hp3GM30C-YEU 27hp3GM30F 27hp3GM30F-YEU 27hp3GM30FC-YEU 27hp3GM30FVE 27hp3GM30VE 27hp3HM35C 34hp3HM35F 34hpYSM12 12hpYSM8 8hp
No cross-references recorded for this part yet.

Used in 19 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
3TN66-UMF 3TN66-UMF Parts Catalog Fig 2. GEAR HOUSING 2 19 2 2
3TN66-UMF 3TN66-UMF Parts Catalog Fig 12. GOVERNOR 13 57 2 2
3TN66L-UT 3TN66L-UT Parts Catalog Fig 2. GEAR HOUSING 6 9 1 2
3TN66L-UT 3TN66L-UT Parts Catalog Fig 15. GOVERNOR 19 28 2 2
3TN75E-G1, 3TN75E-G2, 3TN82E-G1, 3TN82E-G2, 4TN82E-G1, 4TN82E-G2 3TN82E Parts Catalog Fig 19. CRANKSHAFT & FLYWHEEL 26 30 1 1
3TN84L-RTBZ 3TN84L Parts Catalog Fig 8. CRANKSHAFT & PISTON 12 5 1 1
3TNE68-UMF 3TNE68-UMF Parts Catalog Fig 2. GEAR HOUSING 2 22 2 2
3TNE84-G1A, 3TNE84-G2A, 3TNE84-SA, 3TNE84C-G1A 3TNE84 Parts Catalog Fig 9. CRANKSHAFT & PISTON 14 8 1 1
3TNE84T-EMP 3TNE84T-EMP Parts Catalog Fig 9. CRANKSHAFT & PISTON (A)=3TNE84T-EMP 13 7 1 1
4TNE84-EG1A, 4TNE84-ESA, 4TNE84-G1A01, 4TNE84-G2A01, 4TNE84-SA 4TNE84 Parts Catalog Fig 9. CRANKSHAFT & PISTON (A)=4TNE84-SA 13 8 1 1
4TNE88-PG 4TNE88-PG Parts Catalog Fig 8. CRANKSHAFT & PISTON (A)=4TNE88-PG 12 7 1 1
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 11. CYLINDER HEAD 19 34-1 2 1
1GM10, 1GM10C 1GM10 Parts Catalog Fig 15. CYLINDER HEAD 22 16 2 1

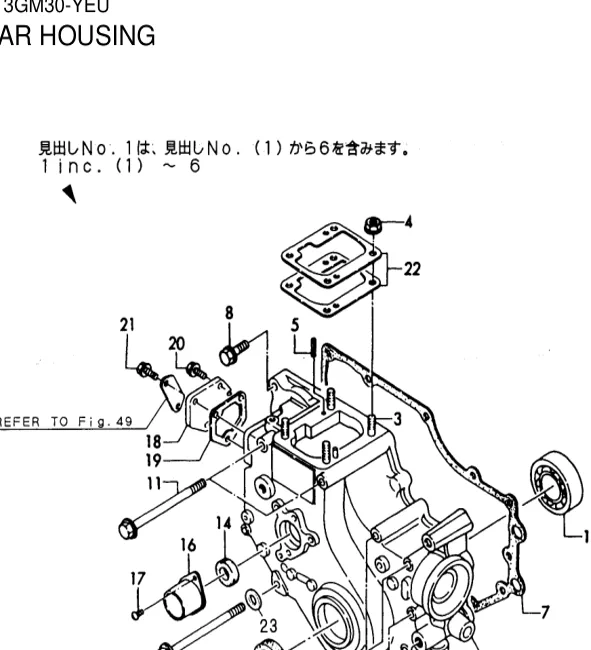

3GM30, 3GM30-YEU, 3GM30C-YEU 3GM30-YEU Parts Catalog Fig 3. GEAR HOUSING 10 5 2 2
3GM30, 3GM30C, 3GM30VE 3GM30 Parts Catalog Fig 3. GEAR HOUSING 11 5 2 2
3GM30, 3GM30F-YEU, 3GM30FC-YEU 3GM30-YEU Parts Catalog Fig 4. GEAR HOUSING 11 5 2 2
3GM30B, 3GM30F, 3GM30FVE 3GM30 Parts Catalog Fig 4. GEAR HOUSING 12 5 2 2
3HM35C, 3HM35F 3HM35 Parts Catalog Fig 3. GEARS HOUSING 4 5 2 2
YSM12, YSM8 YSM YA YC Parts Catalog Fig 3. CYL. HEAD & DECOMPRESSION REMOTE CONTROL 22 3-15 1 1
