Home › Part 174307-51700

174307-51700 Marine + Industrial

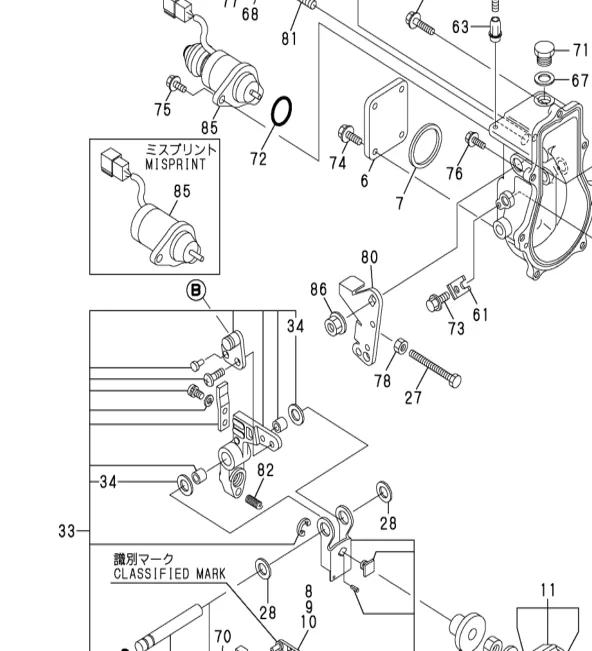

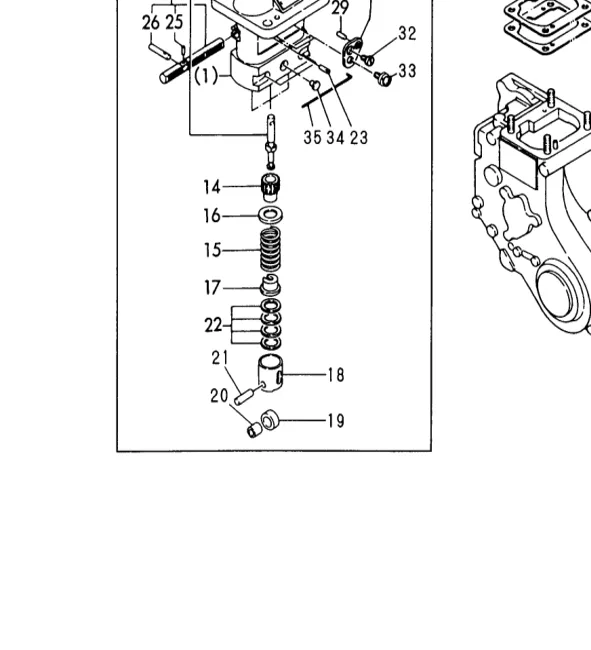

SHIM SET

174307-51700 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links — they help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
3TN66-UMF3TN66L-UT3TN84L-RTBZ 33hp3TNE68-UMF3TNE84-G1A3TNE84-G2A3TNE84-SA3TNE84C-G1A3TNE84T-EMP4TNE84-EG1A4TNE84-ESA4TNE84-G1A014TNE84-G2A014TNE84-SA4TNE88-PG1GM 7.5hp1GM10 9hp1GM10C 9hp2YM15 14hp3GM30 27hp3GM30-YEU 27hp3GM30B 27hp3GM30C 27hp3GM30C-YEU 27hp3GM30F 27hp3GM30F-YEU 27hp3GM30FC-YEU 27hp3GM30FVE 27hp3GM30VE 27hp3HM35C 34hp3HM35F 34hp3JH2 38hp3JH2-TE 47hp3JH2Z 38hp3JH3CE 40hp3JH3E 40hp3JH3E(EPA) 40hp3JH4E 39hp3QM 30hp3YM20 21hp3YM30 29hp3YM30AE 29hp4JH-HT 66hp4JH2-DTE 88hp4JH2-HTE 75hp4JH2-TE 62hp4JH2E 50hp4JH3CE 56hp4JH3CE1 56hp4JH3E 56hp4JH4E 55hp
No cross-references recorded for this part yet.

Used in 31 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
3TN66-UMF 3TN66-UMF Parts Catalog Fig 12. GOVERNOR 13 29 3 2
3TN66L-UT 3TN66L-UT Parts Catalog Fig 15. GOVERNOR 19 18 3 2
3TN84L-RTBZ 3TN84L Parts Catalog Fig 15. GOVERNOR 20 20 3 2
3TNE68-UMF 3TNE68-UMF Parts Catalog Fig 12. GOVERNOR 13 29 3 2
3TNE84-G1A, 3TNE84-G2A, 3TNE84-SA, 3TNE84C-G1A 3TNE84 Parts Catalog Fig 14. GOVERNOR 23 39 3 2
3TNE84T-EMP 3TNE84T-EMP Parts Catalog Fig 14. GOVERNOR (A)=3TNE84T-EMP 19 33 4 2
4TNE84-EG1A, 4TNE84-ESA, 4TNE84-G1A01, 4TNE84-G2A01, 4TNE84-SA 4TNE84 Parts Catalog Fig 14. GOVERNOR (A)=4TNE84-SA 20 41 3 2
4TNE88-PG 4TNE88-PG Parts Catalog Fig 13. GOVERNOR (A)=4TNE88-PG 18 31 4 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 34. FUEL INJECTION PUMP 45 27 2 1 / 2 / 3
1GM10, 1GM10C 1GM10 Parts Catalog Fig 35. FUEL INJECTION PUMP 42 23 2 1
1GM10 1GM10 Parts Catalog Fig 36. FUEL INJECTION PUMP 43 23 ▲ 2 1
2YM15 2YM15 Parts Catalog Fig 20. GOVERNOR 25 30 4 2
3GM30, 3GM30-YEU, 3GM30C-YEU, 3GM30F-YEU, 3GM30FC-YEU 3GM30-YEU Parts Catalog Fig 40. FUEL INJECTION PUMP 49 22 2 3
3GM30, 3GM30B, 3GM30C, 3GM30F, 3GM30FVE, 3GM30VE 3GM30 Parts Catalog Fig 43. FUEL INJECTION PUMP 52 22 2 3
3HM35C, 3HM35F 3HM35 Parts Catalog Fig 42. FUEL INJECTION PUMP 43 32 2 3
3JH2, 3JH2Z 3JH2 Parts Catalog Fig 23. GOVERNOR 27 35 3 2
3JH2, 3JH2-TE 3JH2-TE yanmarshop parts.csv Fig 23. GOVERNOR 1 35 1
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog Fig 25. GOVERNOR 28 34 3 2
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog (2) Fig 25. GOVERNOR 32 34 3 2
3JH4E 3JH4E Parts Catalog Fig 26. GOVERNOR 31 34 3 2
3QM 3QM30 Parts Catalog Fig 13. FUEL INJECTION PUMP 25 38 2 3
3YM20 3YM20 Parts Catalog Fig 21. GOVERNOR 29 30 4 2
3YM30, 3YM30AE 3YM30AE Parts Catalog Fig 19. GOVERNOR 23 31 4 2
3YM30 3YM30 Parts Catalog Fig 21. GOVERNOR 26 30 4 2
4JH-HT 4JH 4JH-T 4JH-HT Parts Catalog Fig 37. GOVERNOR(FOR B00ST COMPEMSATOR 53 30 2 2
4JH2-DTE, 4JH2-HTE, 4JH2-TE 4JH2 Parts Catalog Fig 37. GOVERNOR(4JH2-TE,HTE,DTE) 50 30 2 2
4JH2E 4JH2 Parts Catalog Fig 38. GOVERNOR(4JH2E) 52 32 2 2
4JH2-DTE, 4JH2-HTE, 4JH2-TE 4JH2E Parts Catalog Fig 37. GOVERNOR(4JH2-TE,HTE,DTE) 50 30 2 2
4JH2E 4JH2E Parts Catalog Fig 38. GOVERNOR(4JH2E) 52 32 2 2
4JH3CE, 4JH3CE1, 4JH3E 4JH3E Parts Catalog Fig 37. GOVERNOR 43 31 3 2
4JH4E 4JH4E Parts Catalog Fig 27. GOVERNOR 32 34 3 2
