Home › Part 129150-35111

129150-35111 Marine + Industrial

GASKET

129150-35111 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links — they help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
3TN75E-G1 24hp3TN75E-G2 24hp3TN82E-G1 33hp3TN82E-G2 33hp3TN84L-RTBZ 33hp3TNE84-G1A3TNE84-G2A3TNE84-SA3TNE84C-G1A3TNV82A-BDSA33TNV82A-BDSA3C3TNV82A-BDSA3T3TNV82A-BPYBC3TNV82A-BPYBD3TNV82A-BPYBU3TNV84T-BKWM3TNV84T-BMCU3TNV88-BPTS 36hp4TN82E-G1 38hp4TN82E-G2 38hp4TNE84-EG1A4TNE84-ESA4TNE84-G1A014TNE84-SA4TNE88-PG4TNV84-KLAN4TNV84T-DSA4TNV84T-DSA24TNV84T-DSA34TNV84T-GGE4TNV88-DSA 48hp4TNV88-DSA2 48hp4TNV88-DSA3 48hp4TNV88-GGE 48hp4TNV88-GMG 48hp3JH40 40hp3JH4E 39hp3JH5E 38.5hp4JH110 110hp4JH45 45hp4JH4AE 55hp4JH4E 55hp4JH57 57hp4JH5E 53.8hp4JH80 80hp

Supersession

Replaces (older)
Part No.DescriptionCodeApplies
129150-35110 GASKET N A=E27736
No cross-references recorded for this part yet.

Used in 39 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty

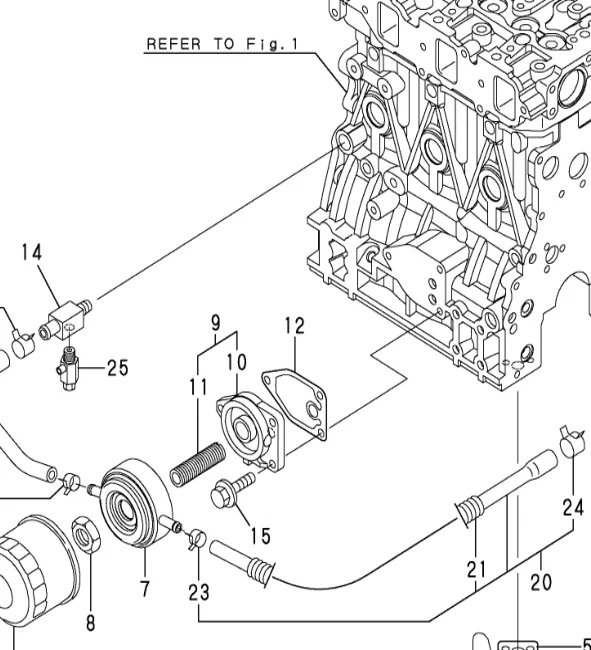

3TN75E-G1, 3TN75E-G2, 3TN82E-G1, 3TN82E-G2, 4TN82E-G1, 4TN82E-G2 3TN82E Parts Catalog Fig 21. LUB.OIL SYSTEM 29 28-1 ▲ 1 1
3TN84L-RTBZ 3TN84L Parts Catalog Fig 9. LUB. OIL SYSTEM 13 10-1 ▲ 1 1

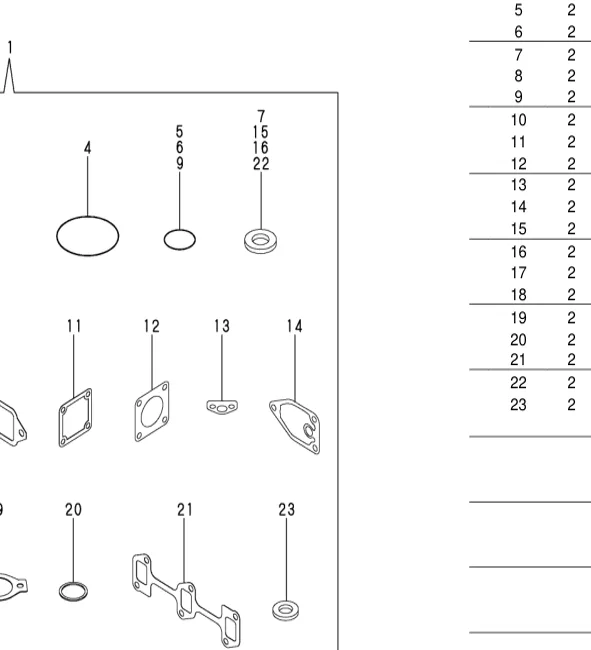

3TN84L-RTBZ 3TN84L Parts Catalog Fig 19. GASKET SET & TOOLS 25 15-1 ▲ 2 1
3TNE84-G1A, 3TNE84-SA, 3TNE84C-G1A 3TNE84 Parts Catalog Fig 10. LUB.OIL SYSTEM 15 33 1 1
3TNE84-G1A, 3TNE84-G2A, 3TNE84-SA, 3TNE84C-G1A 3TNE84 Parts Catalog Fig 22. GASKET SET 37 18 2 1
3TNV82A-BPYBC, 3TNV82A-BPYBD, 3TNV82A-BPYBU 3TNV82A-BPYBC Parts Catalog Fig 9. LUB. OIL SYSTEM (A)=3TNV82A-BPYBD 13 27 1 1
3TNV82A-BDSA3, 3TNV82A-BDSA3C, 3TNV82A-BDSA3T 3TNV82A-BDSA3 Parts Catalog Fig 9. LUB.OIL SYSTEM 13 14 1 1
3TNV82A-BPYBC, 3TNV82A-BPYBD, 3TNV82A-BPYBU 3TNV82A-BPYBC Parts Catalog Fig 17. GASKET SET (A)=3TNV82A-BPYBD 22 21 2 1
3TNV82A-BDSA3, 3TNV82A-BDSA3C, 3TNV82A-BDSA3T 3TNV82A-BDSA3 Parts Catalog Fig 17. GASKET SET 22 24 2 1
3TNV84T-BMCU 3TNV84T-BMCU Parts Catalog Fig 10. LUB.OIL SYSTEM 14 27 1 1
3TNV84T-BKWM 3TNV84T-BKWM Parts Catalog Fig 11. LUB. OIL SYSTEM 15 30 1 1
3TNV84T-BMCU 3TNV84T-BMCU Parts Catalog Fig 16. GASKET SET 21 25 2 1
3TNV84T-BKWM 3TNV84T-BKWM Parts Catalog Fig 20. GASKET SET 25 17 2 1
3TNV88-BPTS 3TNV88 Parts Catalog Fig 9. LUB.OIL SYSTEM 13 30 1 1
3TNV88-BPTS 3TNV88 Parts Catalog Fig 17. GASKET SET 22 20 2 1
4TNE84-EG1A, 4TNE84-ESA, 4TNE84-G1A01, 4TNE84-SA 4TNE84 Parts Catalog Fig 10. LUB.OIL SYSTEM (A)=4TNE84-SA 14 27 1 1
4TNE84-EG1A, 4TNE84-ESA, 4TNE84-G1A01, 4TNE84-SA 4TNE84 Parts Catalog Fig 24. GASKET SET & TOOL(OPTIONAL) (A)=4TNE84-SA 32 19 2 1
4TNE88-PG 4TNE88-PG Parts Catalog Fig 9. LUB.OIL SYSTEM (A)=4TNE88-PG 13 22 1 1
4TNE88-PG 4TNE88-PG Parts Catalog Fig 18. GASKET SET (A)=4TNE88-PG 23 15 2 1
4TNV84-KLAN 4TNV84-KLAN Parts Catalog Fig 10. LUB.OIL SYSTEM 14 10 1 1
4TNV84T-DSA, 4TNV84T-DSA2, 4TNV84T-DSA3, 4TNV84T-GGE 4TNV84T Parts Catalog Fig 11. LUB. OIL SYSTEM (A)=4TNV84T-DSA 15 12 1 1
4TNV84T-DSA, 4TNV84T-DSA2, 4TNV84T-DSA3, 4TNV84T-GGE 4TNV84T Parts Catalog Fig 22. GASKET SET (A)=4TNV84T-DSA 26 22 2 1
4TNV88-GMG 4TNV88-GMG Parts Catalog Fig 9. LUB.OIL SYSTEM (A)=4TNV88-GMG 13 18 1 1
4TNV88-DSA, 4TNV88-DSA2, 4TNV88-DSA3, 4TNV88-GGE 4TNV88 Parts Catalog Fig 10. LUB.OIL SYSTEM 14 21 1 1
4TNV88-GMG 4TNV88-GMG Parts Catalog Fig 17. GASKET SET (A)=4TNV88-GMG 22 23 2 1
4TNV88-DSA, 4TNV88-DSA2, 4TNV88-DSA3, 4TNV88-GGE 4TNV88 Parts Catalog Fig 19. GASKET SET 23 23 2 1
3JH40 3JH40 Parts Catalog Fig 20. LUB. OIL SYSTEM 24 28 1 1
3JH4E 3JH4E Parts Catalog Fig 14. LUB.OIL SYSTEM 18 12 1 1
3JH4E 3JH4E Parts Catalog Fig 43. GASKET SET(OPTIONAL) 49 14 2 1
3JH5E 3JH5E Parts Catalog Fig 14. LUB. OIL SYSTEM 17 12 1 1
3JH5E 3JH5E Parts Catalog Fig 44. GASKET SET(OPTIONAL) 52 14 2 1
4JH45, 4JH57 4JH45-4JH57 Parts Catalog Fig 19. LUB. OIL SYSTEM 26 27 1 1
4JH4AE 4JH4AE Parts Catalog Fig 14. LUB. OIL SYSTEM 17 12 1 1
4JH4AE 4JH4AE Parts Catalog Fig 43. GASKET SET(OPTIONAL) 51 16 2 1
4JH4E 4JH4E Parts Catalog Fig 14. LUB.OIL SYSTEM 17 12 1 1
4JH4E 4JH4E Parts Catalog Fig 45. GASKET SET(OPTIONAL) 51 16 2 1
4JH5E 4JH5E Parts Catalog Fig 14. LUB. OIL SYSTEM 17 12 1 1
4JH5E 4JH5E Parts Catalog Fig 44. GASKET SET(OPTIONAL) 52 16 2 1
4JH110, 4JH80 4JH80-4JH110 Parts Catalog Fig 22. LUB. OIL SYSTEM 28 25 1 1
