Home › Part 124950-11340
124950-11340 Marine + Industrial
SEAL, VALVE STEM
124950-11340 — Affiliate Parts Search
As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links — they help pay for the site, at no extra cost to you. More
Fitted to
Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.
EnginesNo cross-references recorded for this part yet.
Used in 10 places
Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.
| Model(s) | Catalog | Figure | Page | Ref | Lev | Qty |
|---|---|---|---|---|---|---|

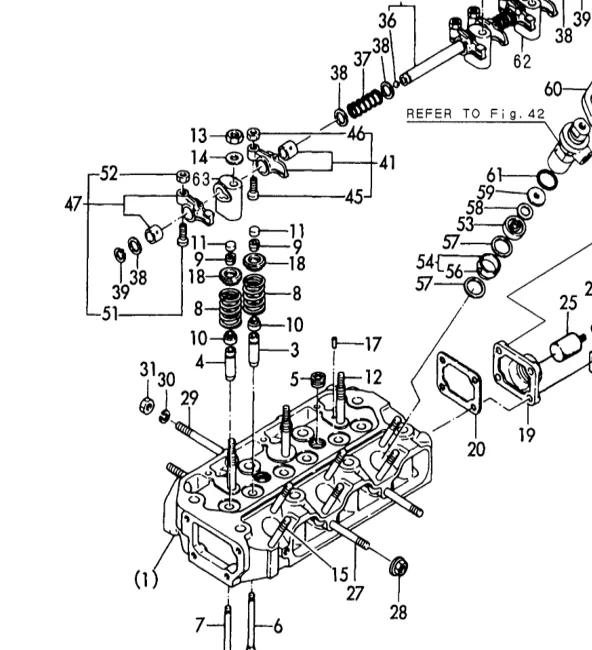

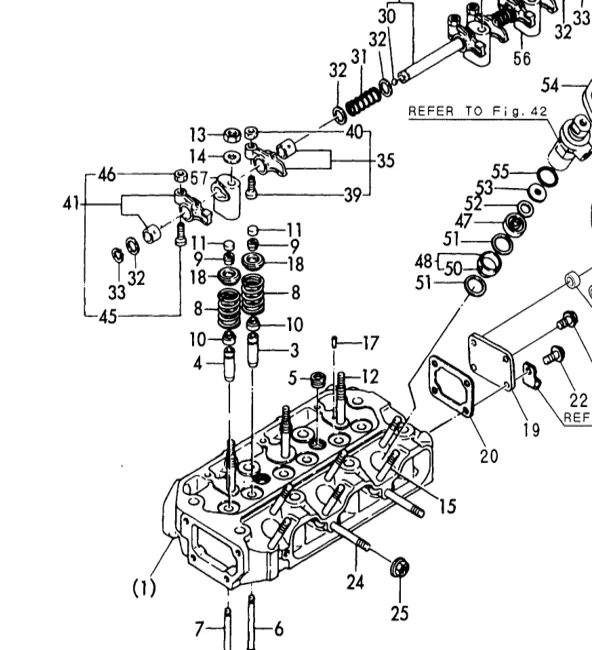

| 3TN75E-G1, 3TN75E-G2 | 3TN82E Parts Catalog | Fig 9. CYLINDER HEAD (3TN75E) | 13 | 29 | 2 | 6 |
| 3TN75E-G1, 3TN75E-G2 | 3TN82E Parts Catalog | Fig 9. CYLINDER HEAD (3TN75E) | 13 | 29-1 ▲ | 2 | 3 |
| 1GM | 1GM 2GM 3GM 3HM Parts Catalog | Fig 11. CYLINDER HEAD | 19 | 25 | 2 | 4 / 6 |
| 1GM10, 1GM10C | 1GM10 Parts Catalog | Fig 15. CYLINDER HEAD | 22 | 9-1 ▲ | 2 | 2 |
| 3GM30, 3GM30-YEU, 3GM30C-YEU | 3GM30-YEU Parts Catalog | Fig 14. CYLINDER HEAD | 21 | 10 | 2 | 6 |
| 3GM30, 3GM30F-YEU, 3GM30FC-YEU | 3GM30-YEU Parts Catalog | Fig 15. CYLINDER HEAD | 23 | 10 | 2 | 6 |
| 3GM30, 3GM30B, 3GM30C, 3GM30VE | 3GM30 Parts Catalog | Fig 16. CYLINDER HEAD | 24 | 10 | 2 | 6 |
| 3GM30F, 3GM30FVE | 3GM30 Parts Catalog | Fig 17. CYLINDER HEAD | 26 | 10 | 2 | 6 |
| 3HM35C | 3HM35 Parts Catalog | Fig 17. CYLINDER HEAD | 18 | 10 | 2 | 6 |
| 3HM35F | 3HM35 Parts Catalog | Fig 18. CYLINDER HEAD | 19 | 10 | 2 | 6 |
