Home › Part 124550-51350

124550-51350 Marine + Industrial

GASKET, DELIVERY

124550-51350 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links — they help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
3TN75E-G1 24hp3TN75E-G2 24hp3TN82E-G1 33hp3TN82E-G2 33hp3TN84L-RTBZ 33hp3TNE84-G1A3TNE84-G2A3TNE84-SA3TNE84C-G1A3TNE84T-EMP4TN82E-G1 38hp4TN82E-G2 38hp4TNE84-EG1A4TNE84-ESA4TNE84-G1A014TNE84-G2A014TNE84-SA4TNE88-PG1GM 7.5hp1GM10 9hp1GM10C 9hp2YM15 14hp3GM30 27hp3GM30-YEU 27hp3GM30B 27hp3GM30C 27hp3GM30C-YEU 27hp3GM30F 27hp3GM30F-YEU 27hp3GM30FC-YEU 27hp3GM30FVE 27hp3GM30VE 27hp3HM35C 34hp3HM35F 34hp3JH2 38hp3JH2-TE 47hp3JH2Z 38hp3JH3CE 40hp3JH3E 40hp3JH3E(EPA) 40hp3JH4E 39hp3QM 30hp3YM20 21hp3YM30 29hp3YM30AE 29hp4JH 44hp4JH-DTE 77hp4JH-HT 66hp4JH-HTE 75hp4JH-T 55hp4JH-TE 50hp4JH2-DTE 88hp4JH2-HTE 75hp4JH2-TE 62hp4JH2E 50hp4JH3CE 56hp4JH3CE1 56hp4JH3E 56hp4JH4E 55hp4JHE 44hp
No cross-references recorded for this part yet.

Used in 35 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
3TN75E-G1, 3TN75E-G2, 3TN82E-G1, 3TN82E-G2 3TN82E Parts Catalog Fig 24. FUEL INJECTION PUMP(3TN75/82E) 36 43 2 3
4TN82E-G1, 4TN82E-G2 3TN82E Parts Catalog Fig 25. FUEL INJECTION PUMP(4TN82E) 39 36 2 4
3TN84L-RTBZ 3TN84L Parts Catalog Fig 12. FUEL INJECTION PUMP 16 20 2 3
3TNE84-G1A, 3TNE84-G2A, 3TNE84-SA, 3TNE84C-G1A 3TNE84 Parts Catalog Fig 13. FUEL INJECTION PUMP 21 39 2 3
3TNE84T-EMP 3TNE84T-EMP Parts Catalog Fig 13. FUEL INJECTION PUMP (A)=3TNE84T-EMP 17 32 3 3
4TNE84-EG1A, 4TNE84-ESA, 4TNE84-G1A01, 4TNE84-G2A01, 4TNE84-SA 4TNE84 Parts Catalog Fig 13. FUEL INJECTION PUMP (A)=4TNE84-SA 18 46 2 4
4TNE88-PG 4TNE88-PG Parts Catalog Fig 12. FUEL INJECTION PUMP (A)=4TNE88-PG 16 30 3 4
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 34. FUEL INJECTION PUMP 45 14 2 1 / 2 / 3
1GM10, 1GM10C 1GM10 Parts Catalog Fig 35. FUEL INJECTION PUMP 42 10 2 1
1GM10 1GM10 Parts Catalog Fig 36. FUEL INJECTION PUMP 43 10 ▲ 2 1
2YM15 2YM15 Parts Catalog Fig 19. FUEL INJECTION PUMP 23 47 2 2

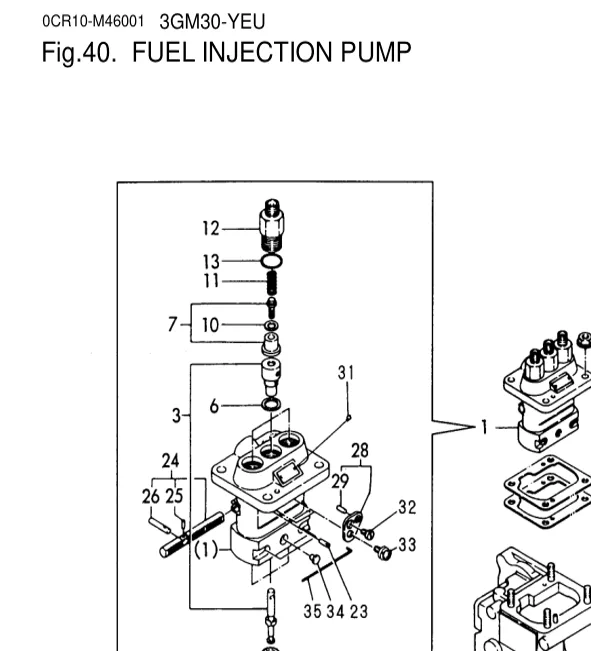

3GM30, 3GM30-YEU, 3GM30C-YEU, 3GM30F-YEU, 3GM30FC-YEU 3GM30-YEU Parts Catalog Fig 40. FUEL INJECTION PUMP 49 10 2 3
3GM30, 3GM30B, 3GM30C, 3GM30F, 3GM30FVE, 3GM30VE 3GM30 Parts Catalog Fig 43. FUEL INJECTION PUMP 52 10 2 3
3HM35C, 3HM35F 3HM35 Parts Catalog Fig 42. FUEL INJECTION PUMP 43 20 2 3
3JH2, 3JH2Z 3JH2 Parts Catalog Fig 18. FUEL INJECTION PUMP 21 30 3 3
3JH2, 3JH2-TE 3JH2-TE yanmarshop parts.csv Fig 18. FUEL INJECTION PUMP 1 31 1
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog Fig 24. FUEL INJECTION PUMP 26 31 3 3
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog (2) Fig 24. FUEL INJECTION PUMP 30 31 3 3
3JH4E 3JH4E Parts Catalog Fig 25. FUEL INJECTION PUMP 29 31 3 3
3QM 3QM30 Parts Catalog Fig 13. FUEL INJECTION PUMP 25 22 2 3
3QM 3QM30 Parts Catalog Fig 27. PACKING KIT(OPTIONAL) 47 39 2 3
3YM20 3YM20 Parts Catalog Fig 20. FUEL INJECTION PUMP 27 49 2 3
3YM30, 3YM30AE 3YM30AE Parts Catalog Fig 18. FUEL INJECTION PUMP 21 61 2 3
3YM30 3YM30 Parts Catalog Fig 20. FUEL INJECTION PUMP 24 49 2 3
4JH, 4JH-T 4JH 4JH-T 4JH-HT Parts Catalog Fig 28. FUEL INJECTION PUMP 37 29 2 4
4JH-HT 4JH 4JH-T 4JH-HT Parts Catalog Fig 29. FUEL INJECTION PUMP 40 29 2 4
4JH, 4JH-DTE 4JH-DTE Parts Catalog Fig 36. FUEL INJECTION PUMP 41 29 2 4
4JH, 4JH-HTE 4JH-HTE Parts Catalog Fig 36. FUEL INJECTION PUMP 32 29 2 4
4JH2-DTE, 4JH2-HTE, 4JH2-TE 4JH2 Parts Catalog Fig 29. FUEL INJECTION PUMP(4JH2-TE,HTE,DTE) 40 29 2 4
4JH2E 4JH2 Parts Catalog Fig 30. FUEL INJECTION PUMP(4JH2E) 42 29 2 4
4JH2-DTE, 4JH2-HTE, 4JH2-TE 4JH2E Parts Catalog Fig 29. F.I.PUMP(4JH2-TE,HTE,DTE) 40 29 2 4
4JH2E 4JH2E Parts Catalog Fig 30. FUEL INJECTION PUMP(4JH2E) 42 29 2 4
4JH3CE, 4JH3CE1, 4JH3E 4JH3E Parts Catalog Fig 35. FUEL INJECTION PUMP(4JH3E) 40 31 2 4
4JH4E 4JH4E Parts Catalog Fig 26. FUEL INJECTION PUMP 30 31 3 4
4JH-TE, 4JHE 4JHE-4JH-TE Parts Catalog Fig 44. FUEL INJECTION PUMP 49 29 2 4
